Clopay Update: Clopay Launches Bridgeport™ 2 or 1 Layer Options



Clopay is excited to offer Bridgeport™ 2 or 1 - Layer options to the Bridgeport™ designs. This will come in the narrow and extended designs.

The following provides details of the launch on Bridgeport™ 2 or 1 - Layer:

  • Available to order on May 2nd, 2022.

  • Available in the Extended and Narrow design options.

  • Available in 24 and 25 gauge models.

  • WindCode® is 24 gauge only.

  • Ultra-Grain™ and Black colors are 24 gauge only.

  • Polystyrene construction includes 1-5/16″ thicknesses.

  • Not available in 18” sections.

  • The same window options and components used for Gallery® pan are used for Bridgeport™ pan models.

  • See below for additional construction, panel, model numbers, colors and window option details.

BRIDGEPORT™ 2 or 1 - LAYER CONSTRUCTION AND PANEL OPTIONS


Ultra-Grain® Finishes

Note – Ultra-Grain® finish Bridgeport™ 2 or 1 - Layer doors will have a woodgrain embossed steel surface. Ultra-Grain charges apply. These two colors are only available on 24-gauge models and have a premium finish upcharge.

WINDOW OPTIONS

Clear, frosted, seeded, obscure and rain glass available in single pane or insulated.

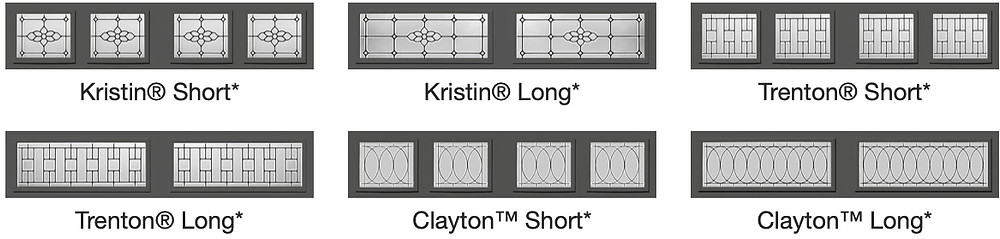

Decorative Glass Options

*Designs complement Clopay Entry Door Windows


Acrylic Options

Note - acrylic windows require special cleaning. Never use cleaners containing ammonia or petroleum products.

*Designs complement Clopay Entry Door windows.


OPTIONAL DECORATIVE HARDWARE

Bridgeport™ garage doors come standard with color matched plastic lift handles. Spade lift handles/step plates available at no upcharge. Additional hardware also available, see below.

*Installation location is important for proper door operation. May interfere if placed near top of door.

† These parts are constructed of aluminum. Other parts not marked are steel construction.


PRODUCT SPECIFICATION AND DESCRIPTION

CLOPAY MODELS (BRIDGEPORT)

DEALER: BD5E, BD5N, BD4E, BD4N, BD5EV, BD5NV, BD4EV, BD4NV

RETAIL: BR5E, BR5N, BR4E, BR4N, BR5EV, BR5NV, BR4EV, BR4NV

HOLMES MODELS (WESTPORT)

RETAIL: PR5E, PR5N, PR4E, PR4N, PR5EV, PR5NV, PR4EV, PR4NV

IDEAL MODELS (RESSESSED)

RETAIL: RR5E, RR5N, RR4E, RR4N, RR5EV, RR5NV, RR4EV, RR4NV


WINDCODE® AVAILABILITY

Recessed panel models follow the same Windload specifications as Gallery® models with some additional limitations in availability. 25 gauge models will not be available for WindCode due to not having 18” sections.

Details:

  • W1: 24 gauge up to 20’0” wide and 25 gauge up to 18’0” wide. Insulated and non-insulated models available.

  • W4: 24 gauge up to 18’0” wide. Insulated and non-insulated models available.

  • W5: 24 gauge up to 16’0” wide. Insulated and non-insulated models available.

  • W6: 24 gauge up to 16’2” wide. Insulated models NOT available.

Future communications will occur upon receipt of additional approvals.


SIZE AVAILABILITY

25 Gauge Models

  • Widths available: 7’8” to 18’0” in 2” increments

  • Heights available: 6’0” to 16’0” in 3” increments

24 Gauge Models

  • Widths available: 7’8” to 20’2” in 2” increments

  • Heights available: 6’0” to 16’0” in 3” increments

Limitations / Exceptions

  • The following widths are not available: 10’2” through 11’4”, 14’8”

  • Section heights are 21” and 24” only. 18” sections are not available. Door heights that cannot be stacked using only 21” and 24” sections are not available

  • Model Matrix has been updated with Bridgeport 2 or 1 - Layer information.
